Pneumatic angle seat valve

Model: PV100P025NC3D
Place of Origin: Zhejiang,China (Mainland)
Power: Pneumatic
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Angle
Material: Stainless Steel
Temperature of Media: Medium Temperature
Media: Water
Brand Name: GP
Material: Stainless steel

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:28.0 USDProduction Capacity:10,000pcs/month
Trade Term:FOBPacking:Carton normally
Payment Terms:L/C, T/T, WUDelivery Date:15-20 days
Min. Order:2 Piece/Pieces
Means of Transport:Ocean, DHL, Air

Products name: NPT1" female thread pneumatic angle seat valve

1. High flow rate

2. Long service life

3. NC and NO universal actuators with modular universal accessory program up to control heads

4. Deliverable with flow direction below or above seat

5. Simple conversion of the control function

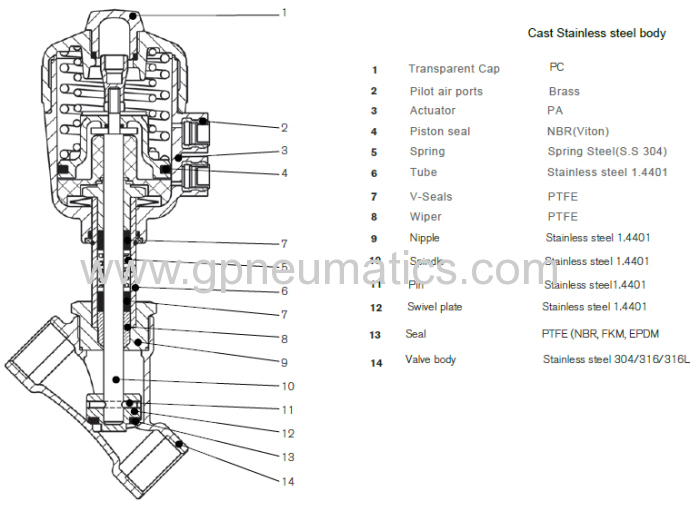

Angle seat valve structure

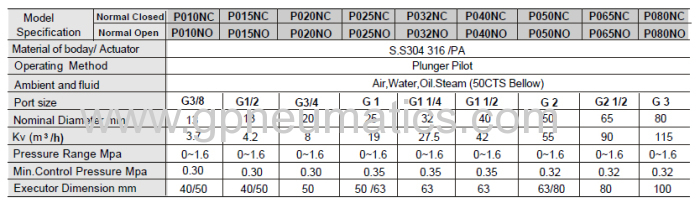

Angle seat valve specification

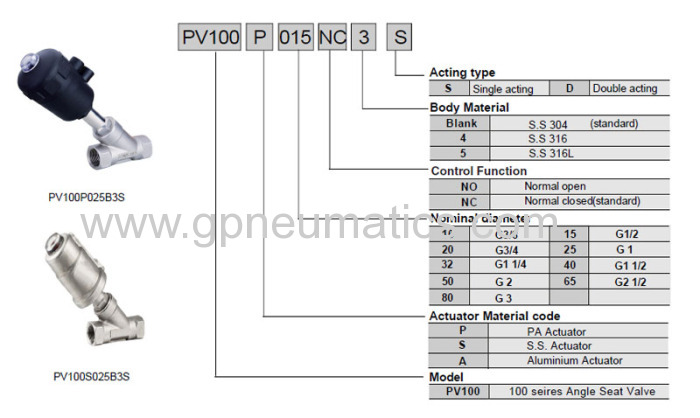

Angle seat valve order code
